Saw cut, Die Cut, water jet cut,Foam Lined, Layered, Anti static, Polyurethane (Ester), Polyethylene (Etha), Crosslink
Features
 |
Pelican cases meet or exceed the highest standards of Industrial, Airline, Military and Commercial Applications. Models 1200 through 1750 and the new Cube cases have a newly designed toggle latch for easier opening. |  |
|
Airtight and Watertight to 30 feet. Nominal temperature range: - 25º to +80º C (-15º to +175º F). | |
|
Constructed of light-weight ultra high impact structural Copolymer Polypropylene. Nominal Wall Thickness .250 inch structural composite sandwich provides 4 times the strength to weight ratio over conventional injection molding. |  |
|
Watertight Neoprene o-ring seal with exclusive Atmospheric purge valve that allows for quick equalization after changes in altitude or temperature. |   |
|
Meet MIL-STD 4150-H Stacking (400 LBS.) Drop Test (48"), Humidity, (120º F at 95 % RH), Immersion (2" at 160º F) | |
|
Supplied complete with pre-scored Pick 'N Pluck™ foam (1.65 lbs. Polyester ) or padded dividers (no cutting required). (except models 1700, 1720 and 1750 which come with standard foam). Custom foam interiors also available.: Saw cut, Die Cut, Foam Lined, Layered, Anti static, Polyurethane (Ester), Polyethylene (Etha) |  |
|
Locking flanges (requires padlock or combination lock). 1506TSA cable lock fits all Pelican cases. Other locks available
*TSA is an American Homeland Security Agency active in airports throughout the U.S. Only. |
  |
|
Molded-In rubber gripped large ergonomically designed handles. Some models feature padded handles |  |
|
Models with wheels: 0340, 0350, 0370, 0500, 0550 (removable wheels) . 1510, 1560, 1610, 1620, 1700, 1720, 1730, 1740 and 1750 feature 2" quiet roll urethane wheels. 1630, 1640, 1650,1660, 1690 & 1780 feature quad wheels on one end. |  |
|
Peli Quick Mounts (set of 4) available for special equipment mounting. Fits all cases. |  |
|

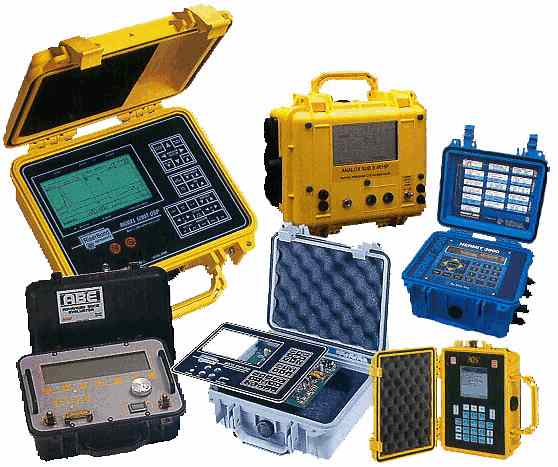

Special application panel frames available for some nodels.Tthe kit includes the mounting bracket or panel frame which installs below your panel and fits against stops molded inside the case walls. A polymer O-ring seals the panel so the case remains watertight even with the lid open. pre-drilled holes and stainless steel screws make fabricating a custom application faster stronger and more accurate. |  .... ...... |
|

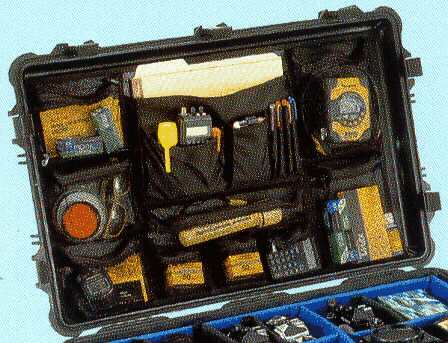

Lid organizers are available for most models. |  .. ..
.............#1659 ------------.......... .#1609................. |
 ..
-#1508------ ------ ... ... ....... .#1509...............................#0349,.#0359 & #0379 |
||
|
Divider Sets available for most models.
Panels adjust to different configurations. |
   |
